CEREBRO is a system that provides rudimentary translation of signals captured from a consumer EEG device into a lighting display output. As my final project for 6.115 (MIT’s “microcomputer” class), this project required use of an 8051-based class labkit, with code written in assembly.

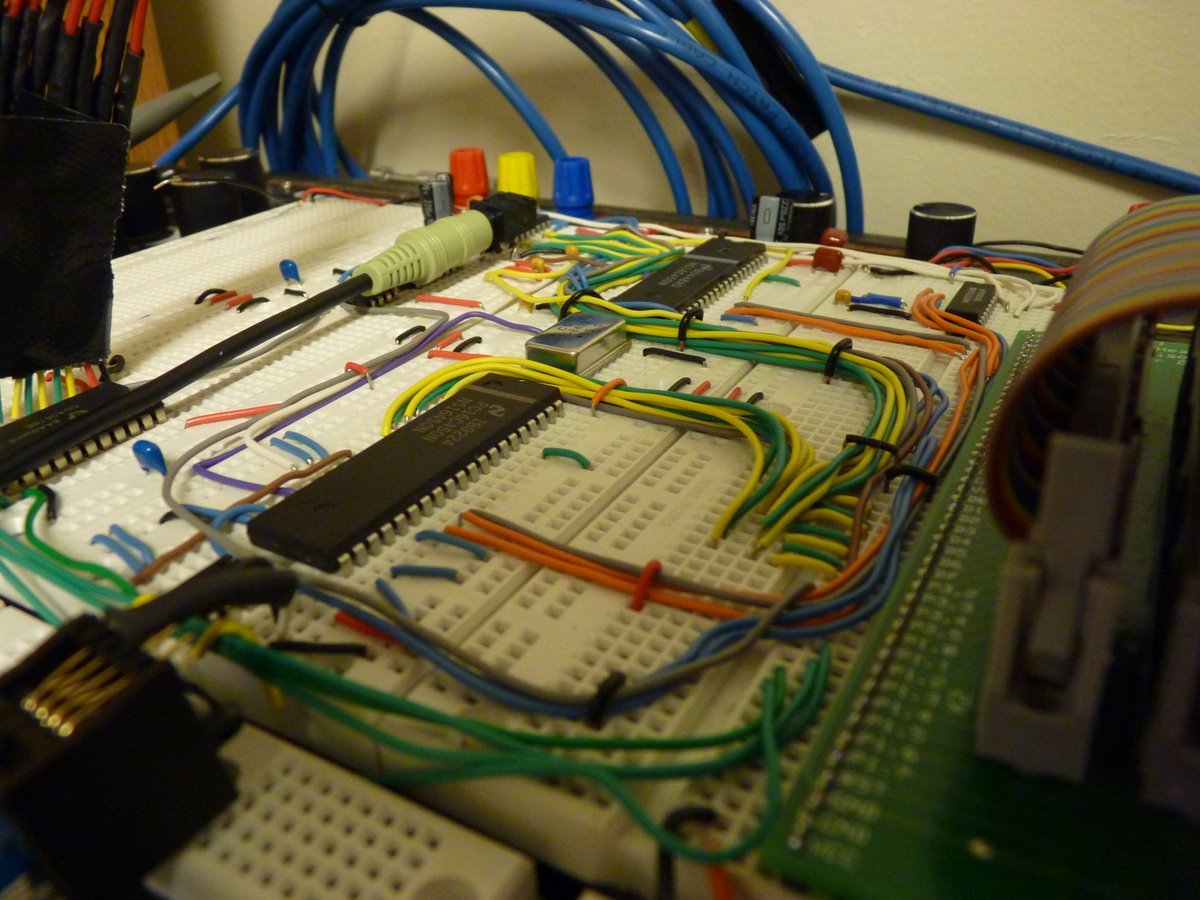

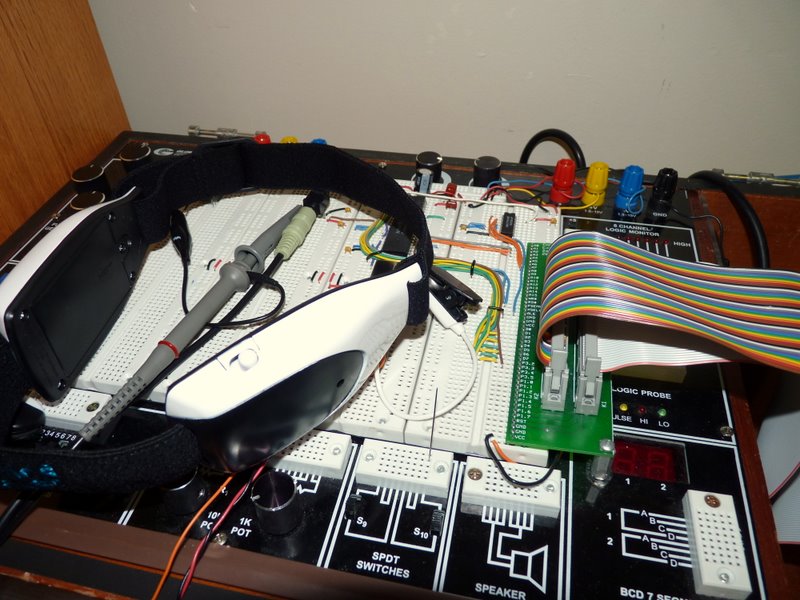

CEREBRO's implementation on the 6.115 labkit CEREBRO's EEG sensor headband


EEG sensor data was obtained by modifying the headband of a Mattel Mindflex toy to output data from the NeuroSky TGAM1 module within it.

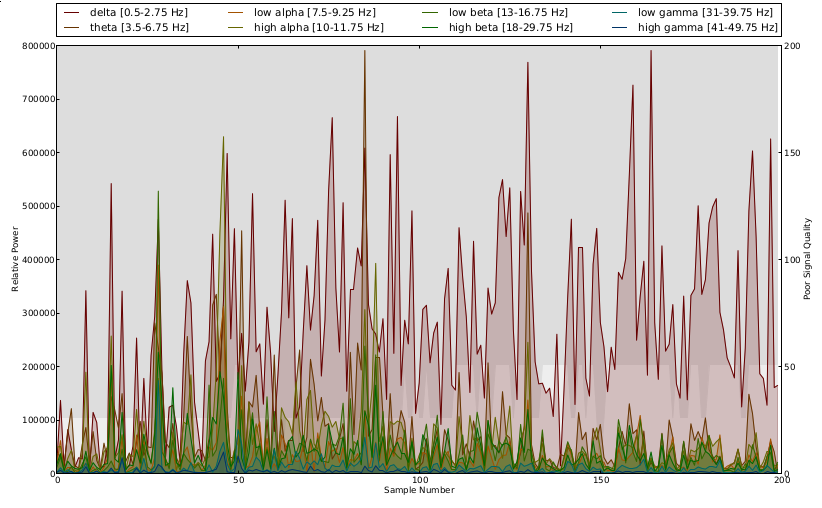

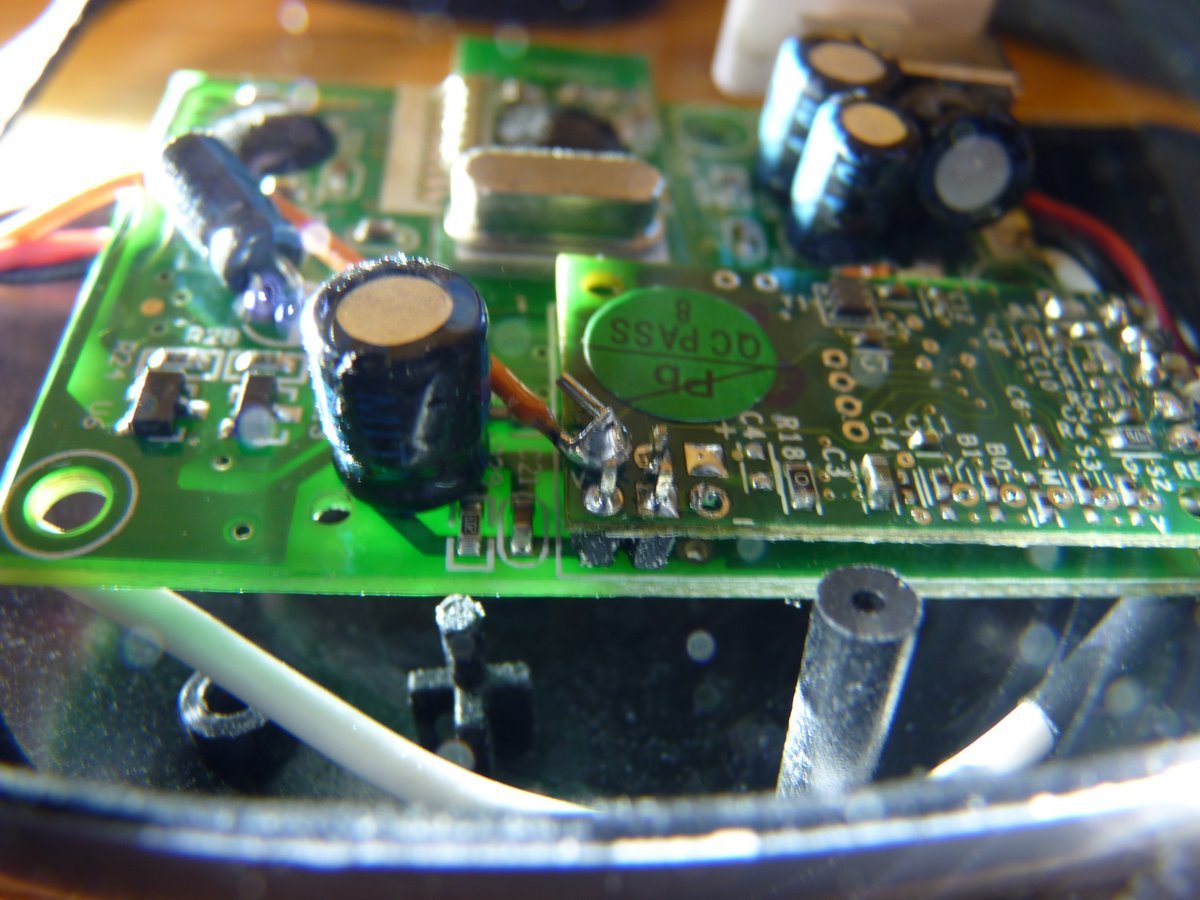

TGAM1 sensor with data line brought out Example sensor data output

Driving the Display

CEREBRO’s 8051 is responsible for computing a lighting display pattern in realtime and driving a light fixture similar in design to that of ACRIS.

A few simple signal processing algorithms were built to showcase CEREBRO. An analog equalizer board could be used to adjust the algorithm behavior.

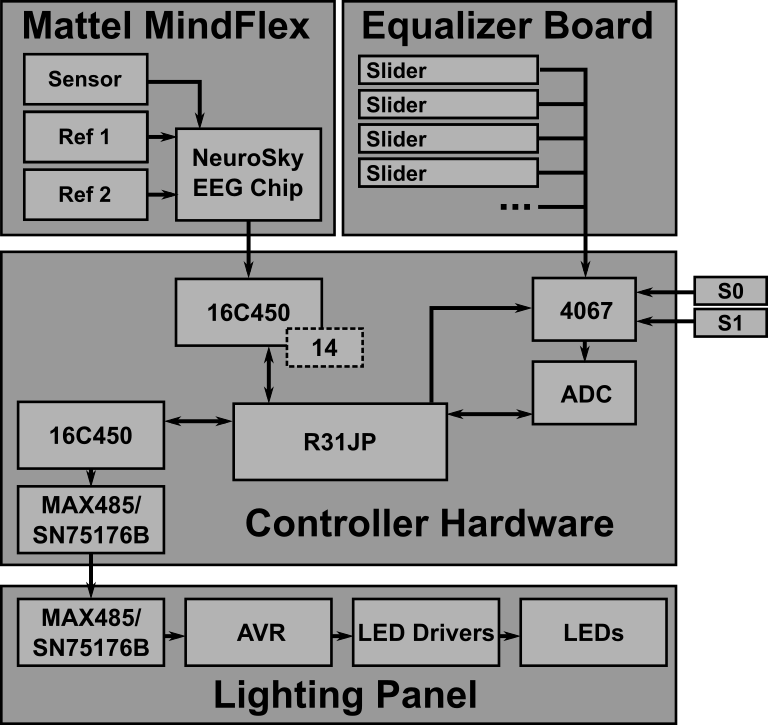

Hardware architecture

Design Considerations

As a large assembly project, elegant infrastructure and coding practices were critical to successful implementation and testing. I established a number of conventions that allowed for modularization of the code. Careful documentation of interface definition and accounting of register usage were crucial. CEREBRO’s modules enabled a variety of functionality, such as:

  • a math library for converting HSV space into RGB,
  • 3 signal processing algorithms for turning an EEG stream into a lighting pattern,
  • a routine for cross-fading between color values,
  • a state machine for receiving and decoding EEG data from the NeuroSky sensor,
  • a driver for smoothly displaying the computed lighting pattern on the light fixture
  • a workloop for retrieving analog slider values from a multiplexed equalizer board, and
  • a simple serial console for printing of debug output

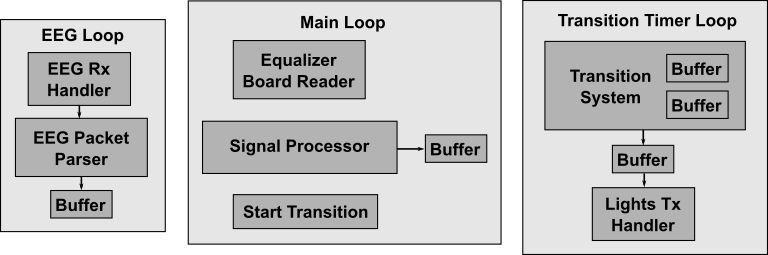

Software architecture
